Model Number |
JPT 2.5-TW-PE |
|
Color |
Yellow&Green |
|

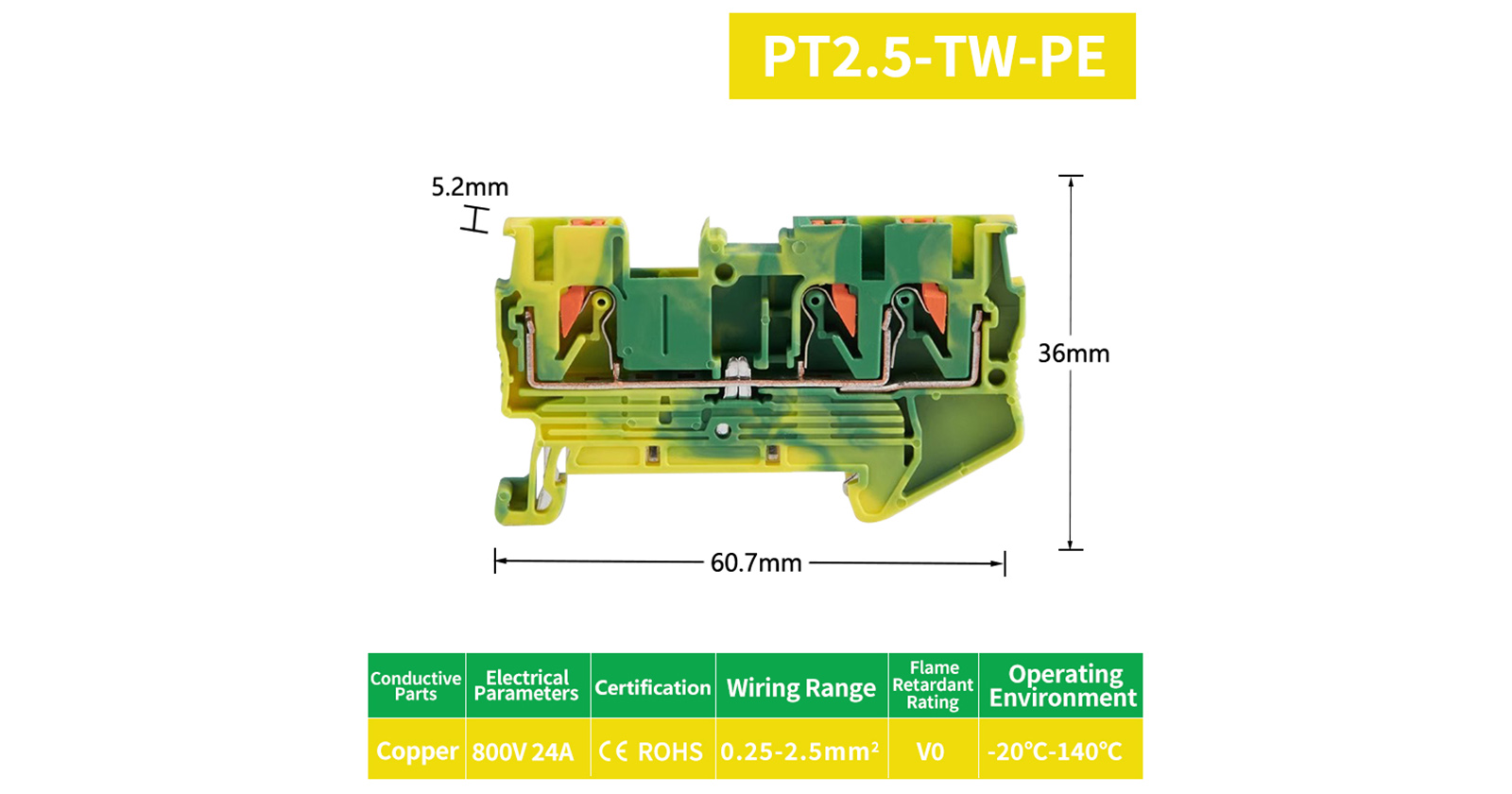

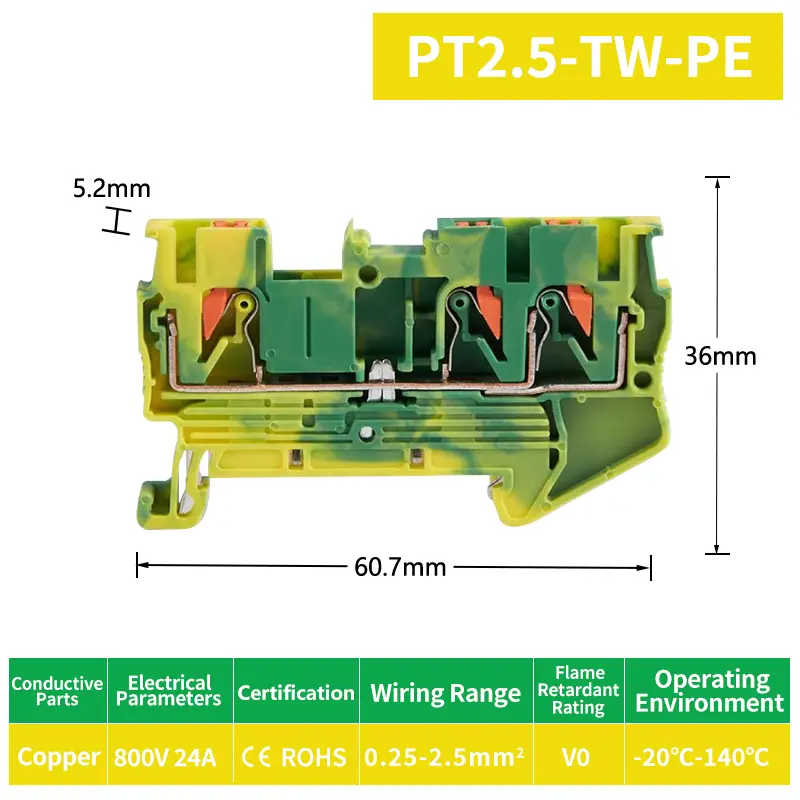

Length/Height/Thicknesses(mm) |
5.2 MM * 60.5 MM * 36.5 MM |
|
Connection method |
Push in Connection Block |
|
Material |
Copper/ Nylon PA66 |
|
Rated Voltage (IEC) V / Current |
800V / 24A |
|
Conductor Size |
0.2-2.5MM² |
|
Certification |
CE/RoHS |
|
LOGO |
SXYDQ |
|
Packing Detail |
0.5KG/50PCS , 100PCS/BOX |
|
Brand |
SXYDQ ,Logo can be Customised for Large Quantities |
|
Application |
Cable |
|
Wiring range |
2.5MM² - 16MM² |
|
Environmental Protection |
General |
|
Connection Mode |
Push-Pull Connection |
|
Contact Termination Form |
Pressure Welding |
|
Type |
Sealed Electric Connector |
|
Production Process |
Injection Molding |
|
Interface Type |
AC/DC |
|
Shape |
Rectangle |
|
American Wire Gauge |
AWG26-12 |
|

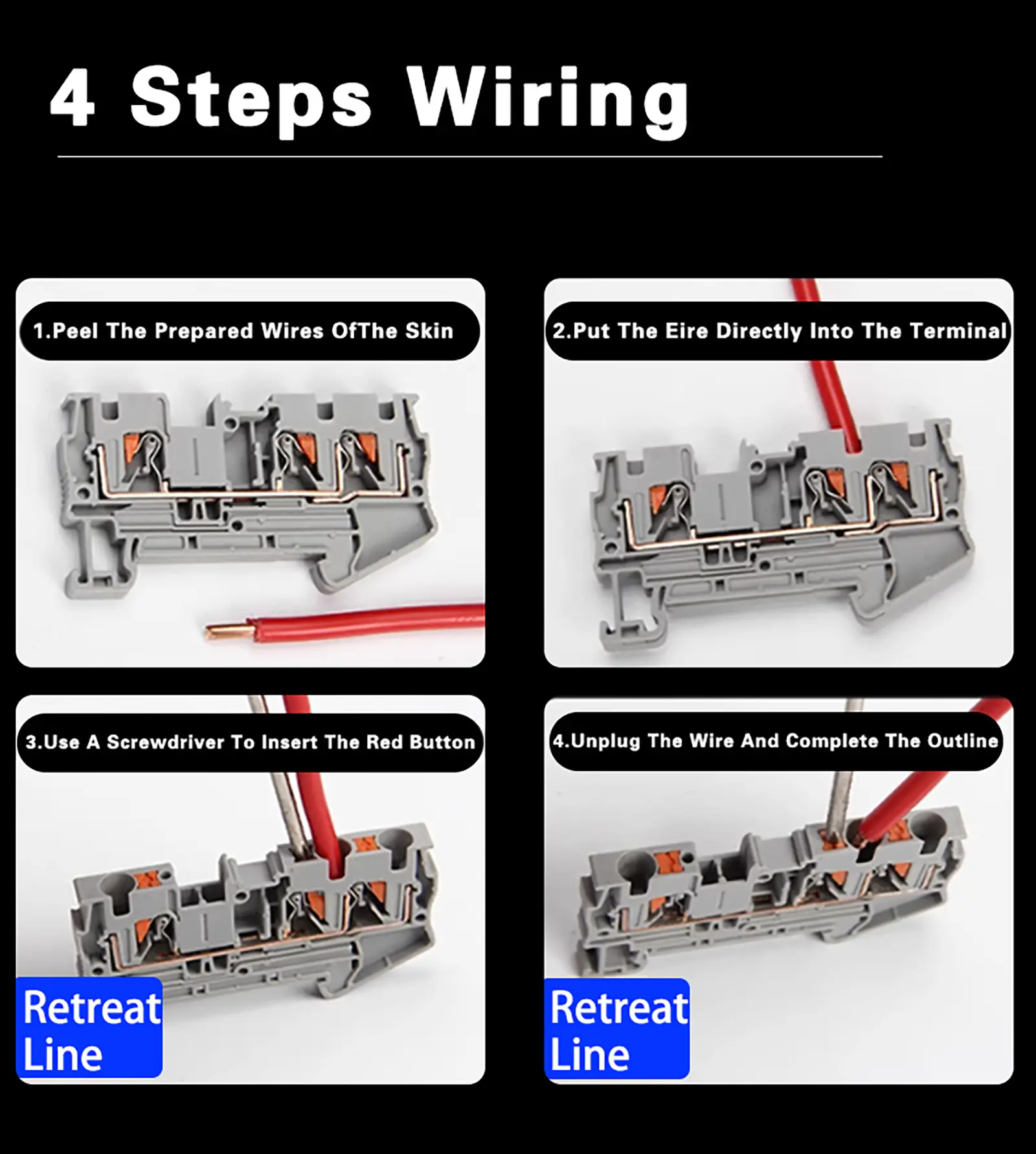

Stripping Length |
8MM-10MM |

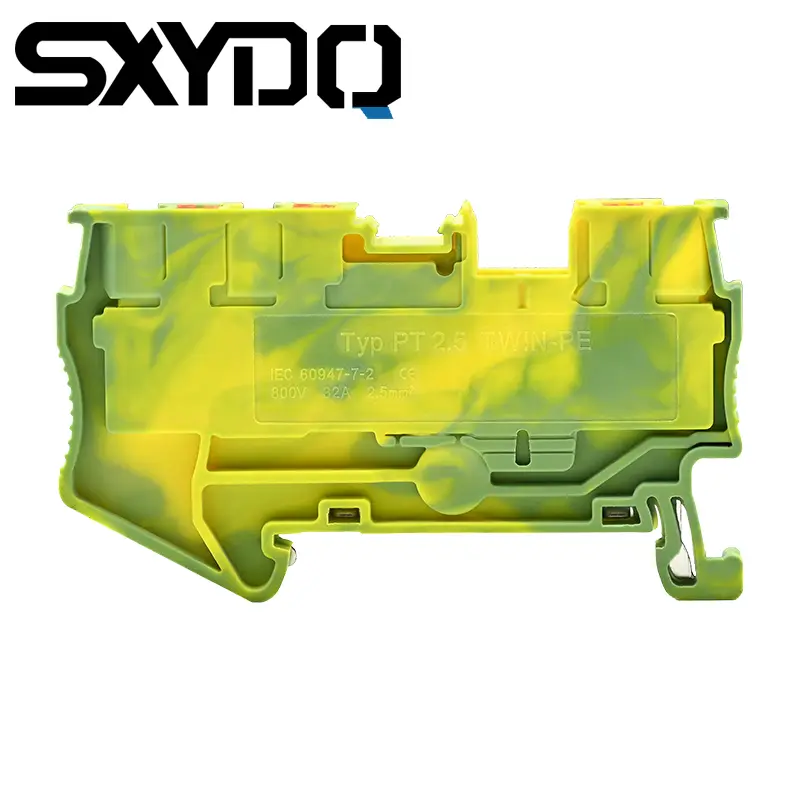

PT2.5-TW-PE Multi Conductor Ground Terminal Block
|
Selling Units |
Box/boxes Bag/Bags |
|
Package Type |
Carton |
|
Daily Output |
10000000000 |
|
Transportation |
Ocean,Land,Air |
|
Place of Origin |
China,Guangdong |
|
Supply Ability |
999999999 |
|
Certificate |
CE, RoHs |
|
HS Code |
8536909000 |
|
Port |
ShenZhen,Guangzhou,Shanghai,Ningbo |
|
Payment Type |
L/C,T/T,D/P,Paypal,Western Union |
|
Incoterm |
EXW,FOB,CFR,CIF,FCA,CPT,CIP,DDP,DAP |
-
