Model Number |
JPTTB2.5-PE |
|
Brand |
SXYDQ |
|
Length/Height/Thicknesses(mm) |
6.2 MM * 69 MM * 46.5 MM |
|
Connection method |
Push in Connection Block |
|
Material |
Copper/ Nylon PA66 |
|
Rated Voltage (IEC) V / Current |
500V / 22A |
|
Conductor Size |
0.14-2.5MM² |
|
Certification |
CE/RoHS |
|
Color |
Grey,Blue,Orange,Green,Yellow,Red,Black and Customization support |
|
Packing Detail |
13g/PC, 50PCS/BOX |
|
Brand |
SXYDQ ,Logo can be Customised for Large Quantities |
|
Application |
Cable |
|
Wiring range |
2.5MM² - 16MM² |
|
Environmental Protection |
General |
|
Connection Mode |
Push-Pull Connection |
|
Contact Termination Form |
Pressure Welding |
|
Type |
Sealed Electric Connector |
|
Production Process |
Injection Molding |
|
Interface Type |
AC/DC |
|
Shape |
Rectangle |
|
American Wire Gauge |
AWG 26-12 |
|
Stripping Length |
8MM-10MM |

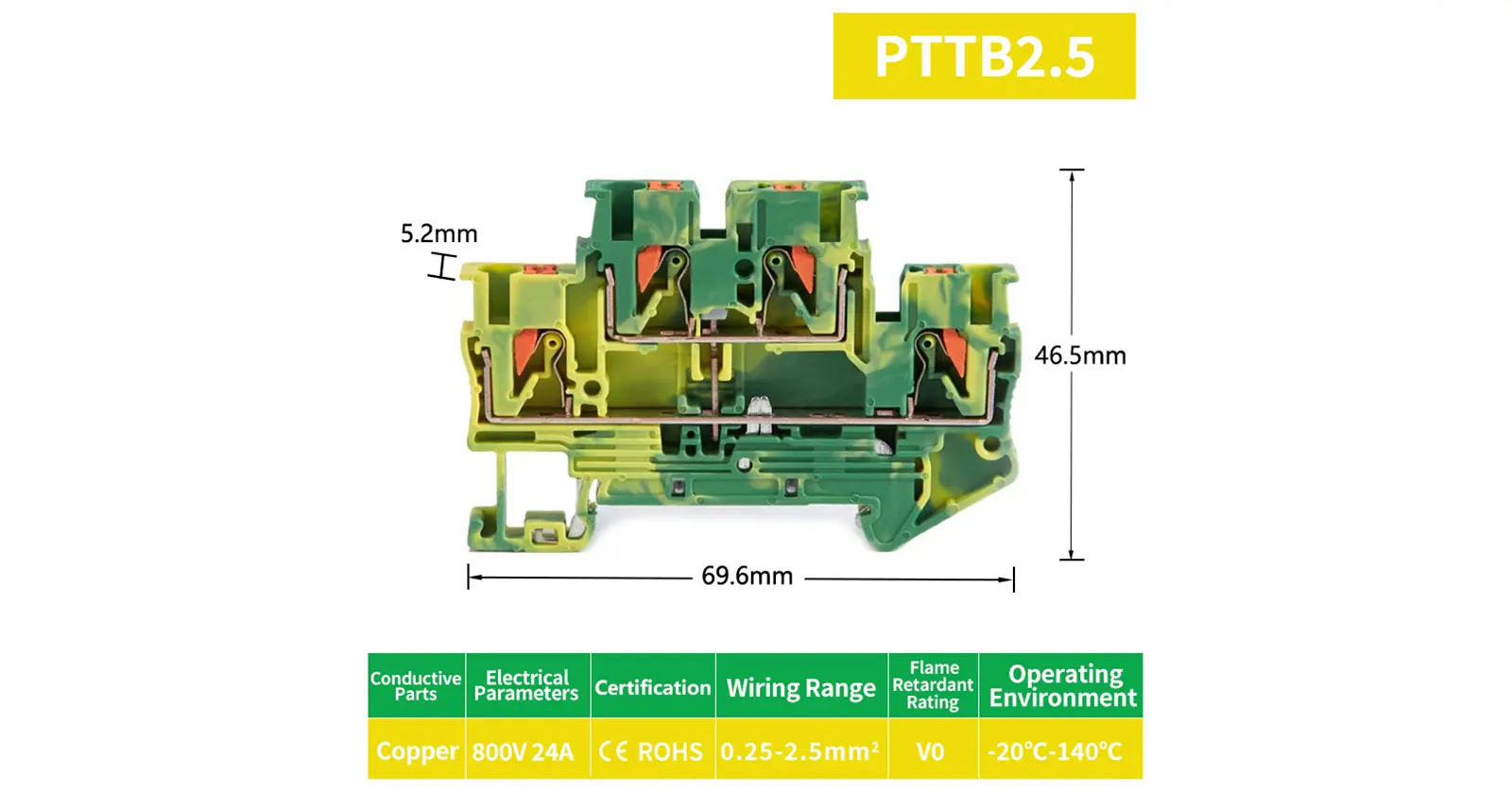

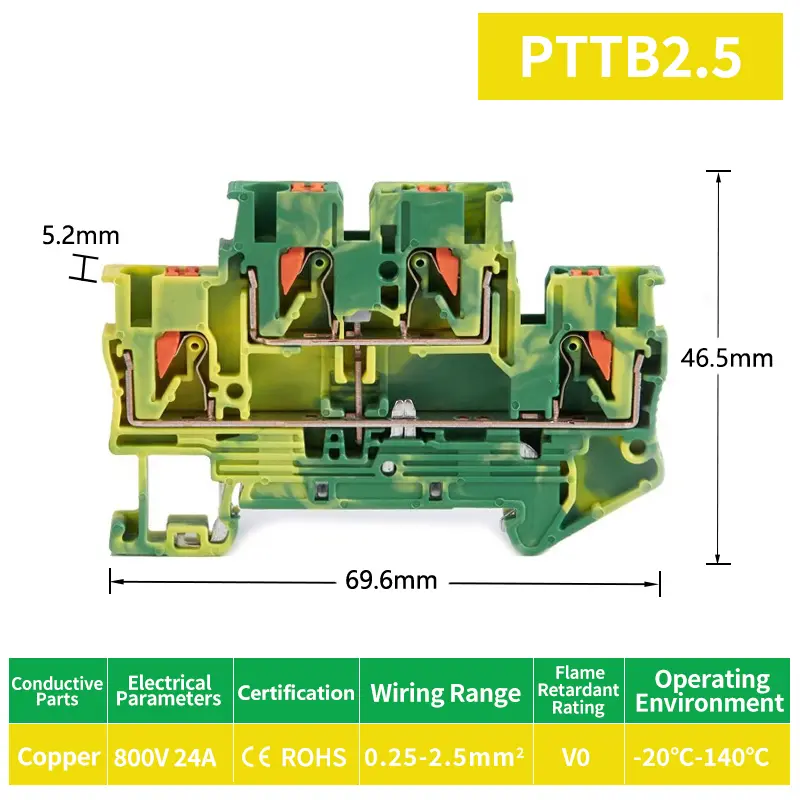

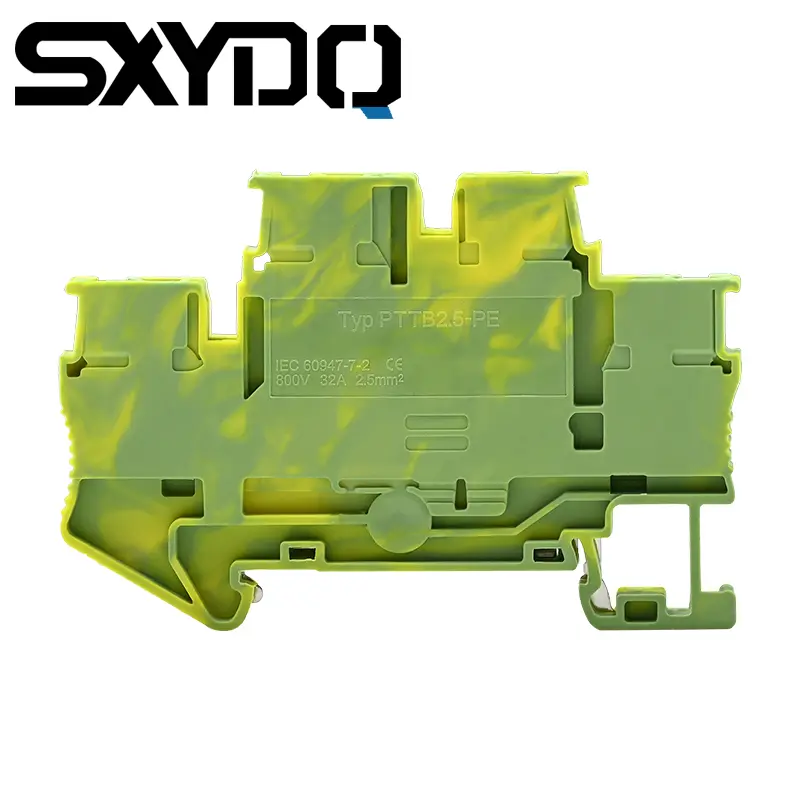

JPTTB 2.5-PE Push-in Ground Double Level Terminal Blocks
DESCRIPTION:

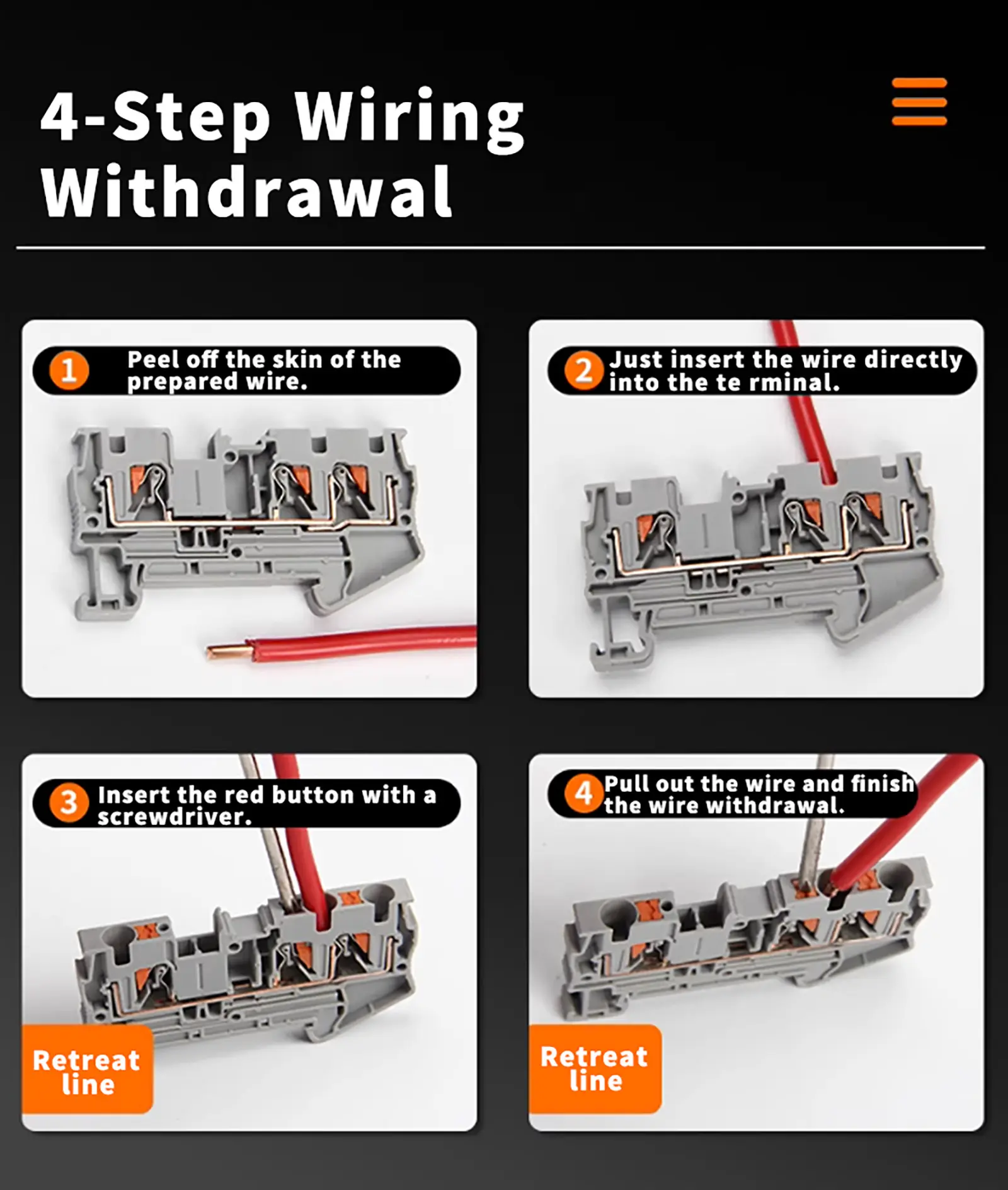

The push in terminal blocks allow front connection for space-saving convenient wiring.
These tool-free terminal blocks feature a push-in direct connection technology, reducing the required insertion force by 50% when connecting solid or ferruled conductors.
Key Features:
·Wide applicability – Suitable for diverse applications.
·High-quality materials – Constructed from flame-retardant PA 66 nylon and copper for reliable performance.
·Effortless installation – 50% lower insertion force for quick and easy wiring.
·Secure connection – Push-in technology eliminates the need for post-installation terminal testing.
·System compatibility – Fully compatible with standard accessories from the CLIPLINE complete system.
Customer Assurance
01.Fast Shipping
Under normal circumstances with products in stock, orders will be shipped within 1-3 business days.
02.Product Images
All product images are professionally photographed in studio conditions. Slight variations may exist due to different factors. Please refer to the actual product received.
03.Delivery Information
To avoid unnecessary disputes, please ensure your shipping address, contact details, and phone number are accurate and up-to-date.
04.Receiving & Inspection
Upon delivery, please inspect the package for any damage before signing. If you notice missing items, incorrect quantities, or damaged goods, contact us immediately.
05.Returns & Refunds
Unless the product quality problems, if the customer said they do not want it, we are not allowed to
|
Selling Units |
Box/boxes Bag/Bags |
|
Package Type |
Carton |
|
Daily Output |
10000000000 |
|
Transportation |
Ocean,Land,Air |
|
Place of Origin |
China,Guangdong |
|
Supply Ability |
999999999 |
|
Certificate |
CE, RoHs |
|
HS Code |
8536909000 |
|
Port |
ShenZhen,Guangzhou,Shanghai,Ningbo |
|
Payment Type |
L/C,T/T,D/P,Paypal,Western Union |
|
Incoterm |
EXW,FOB,CFR,CIF,FCA,CPT,CIP,DDP,DAP |
-
PTTB 2.5 -
D-PTTB2 -

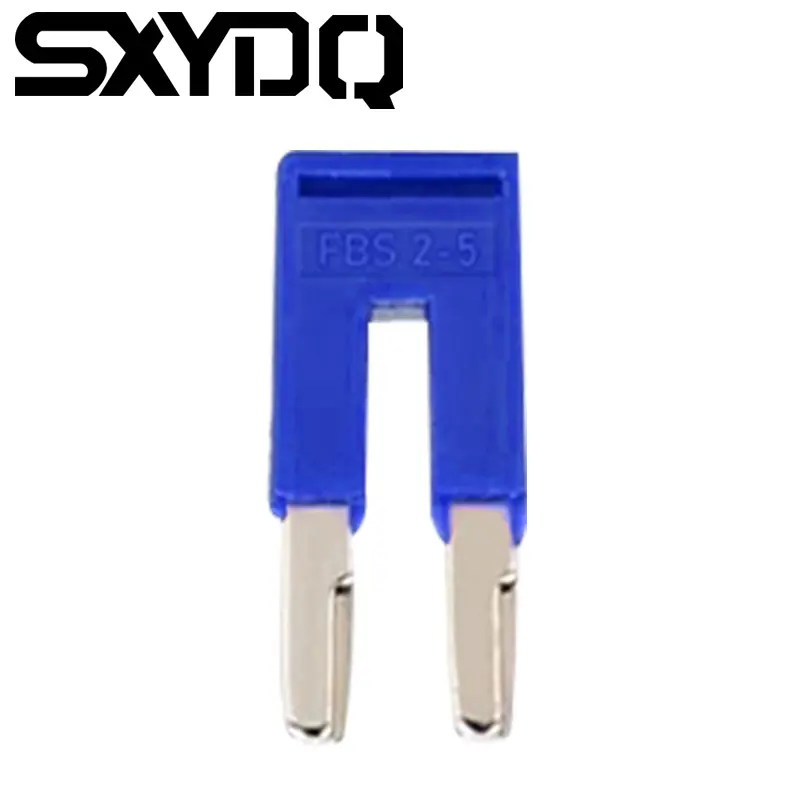

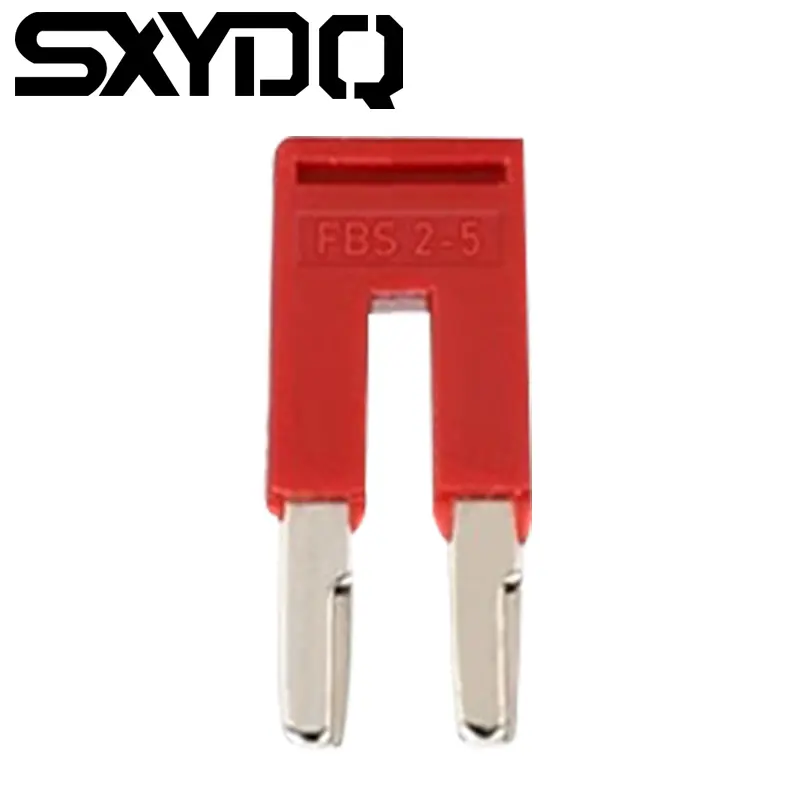

FBS2-5R -
FBS2-5B
